Flanges
Total Energy offers a comprehensive range of industrial flanges designed to meet the demanding requirements of various industries.
Product Overview
The range is 1/2″ to 96″, 150# to 2500#, 3000 psi to 10,000 psi. Based on the standard wide range of thickness and Specifications.

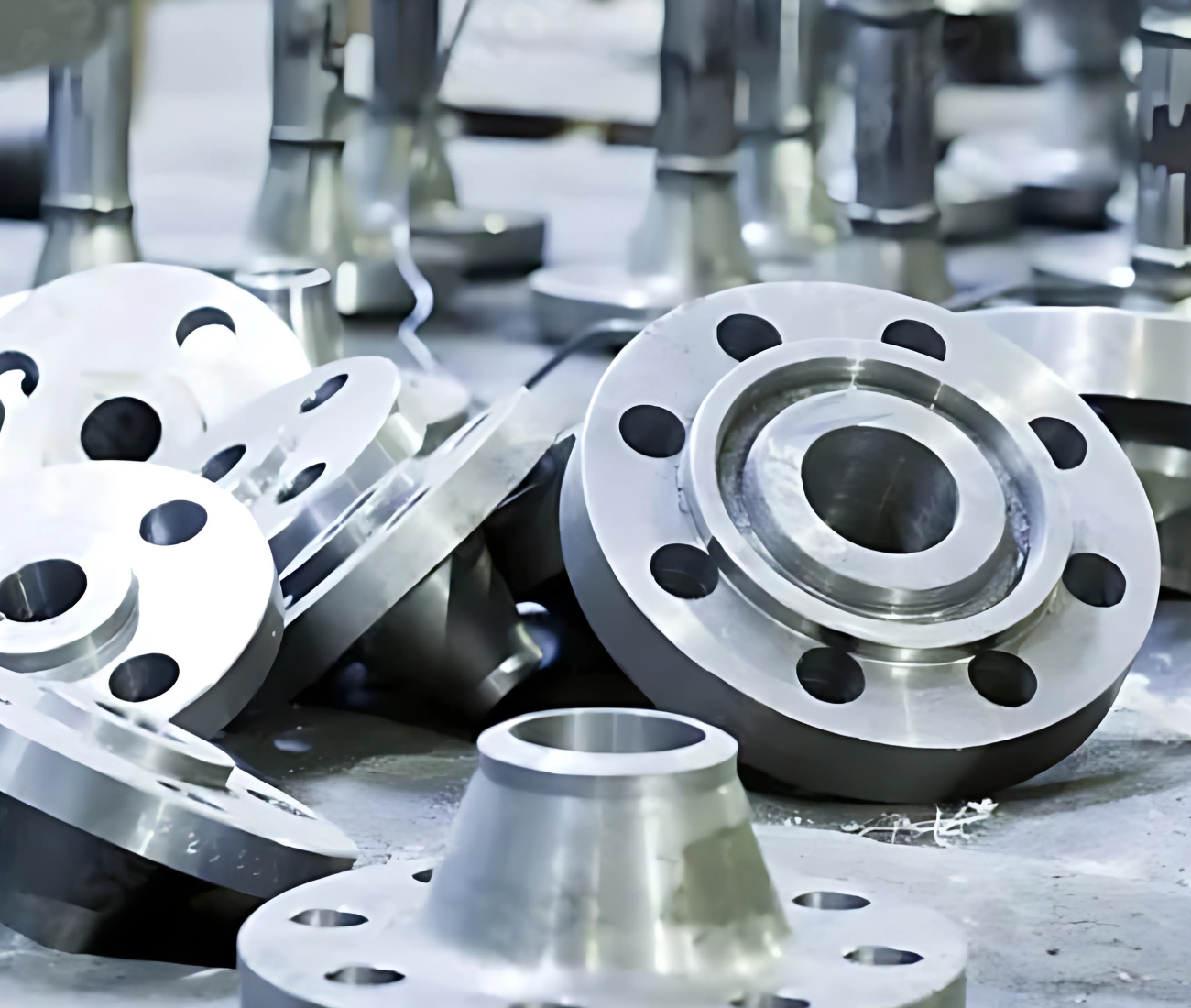

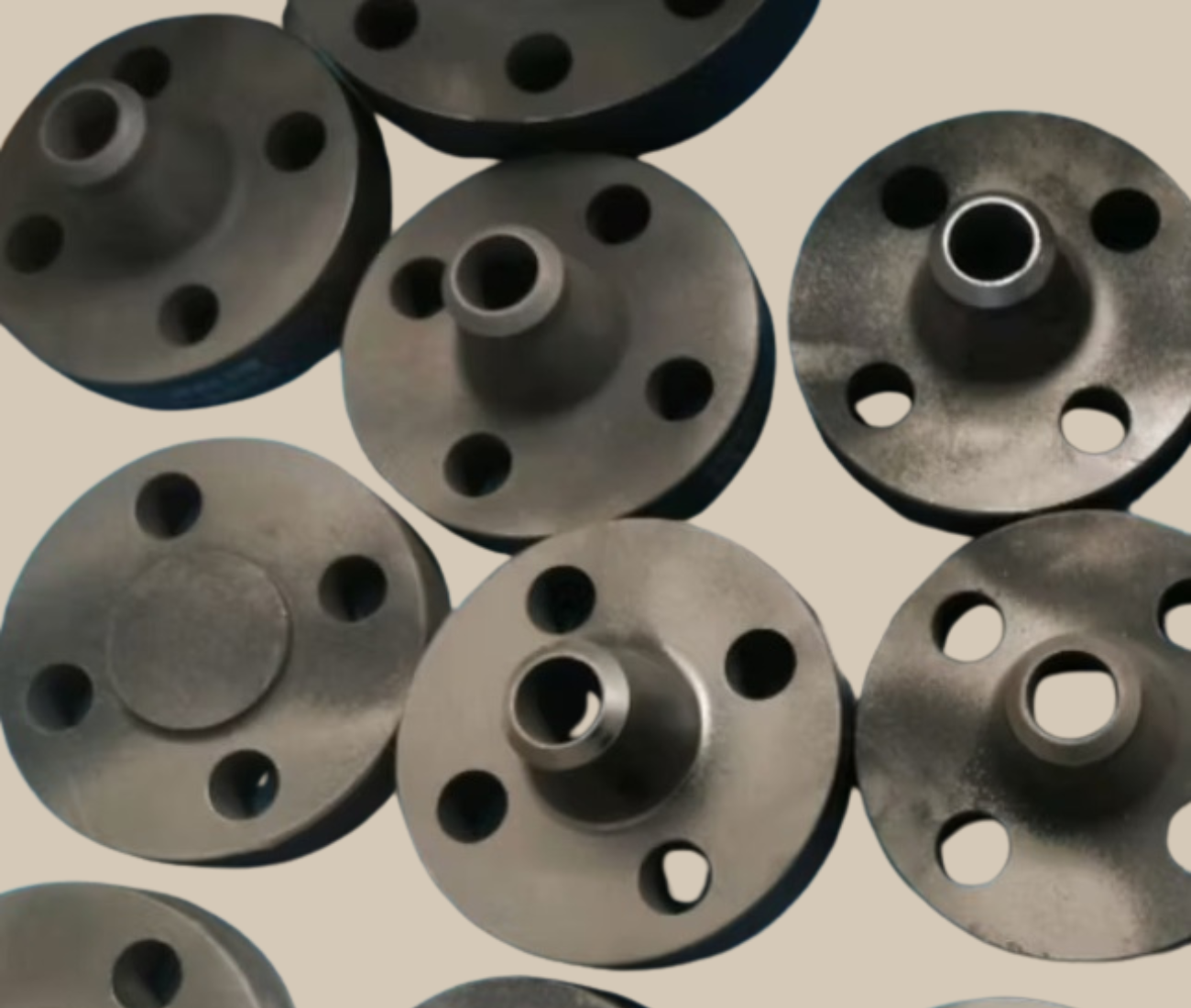

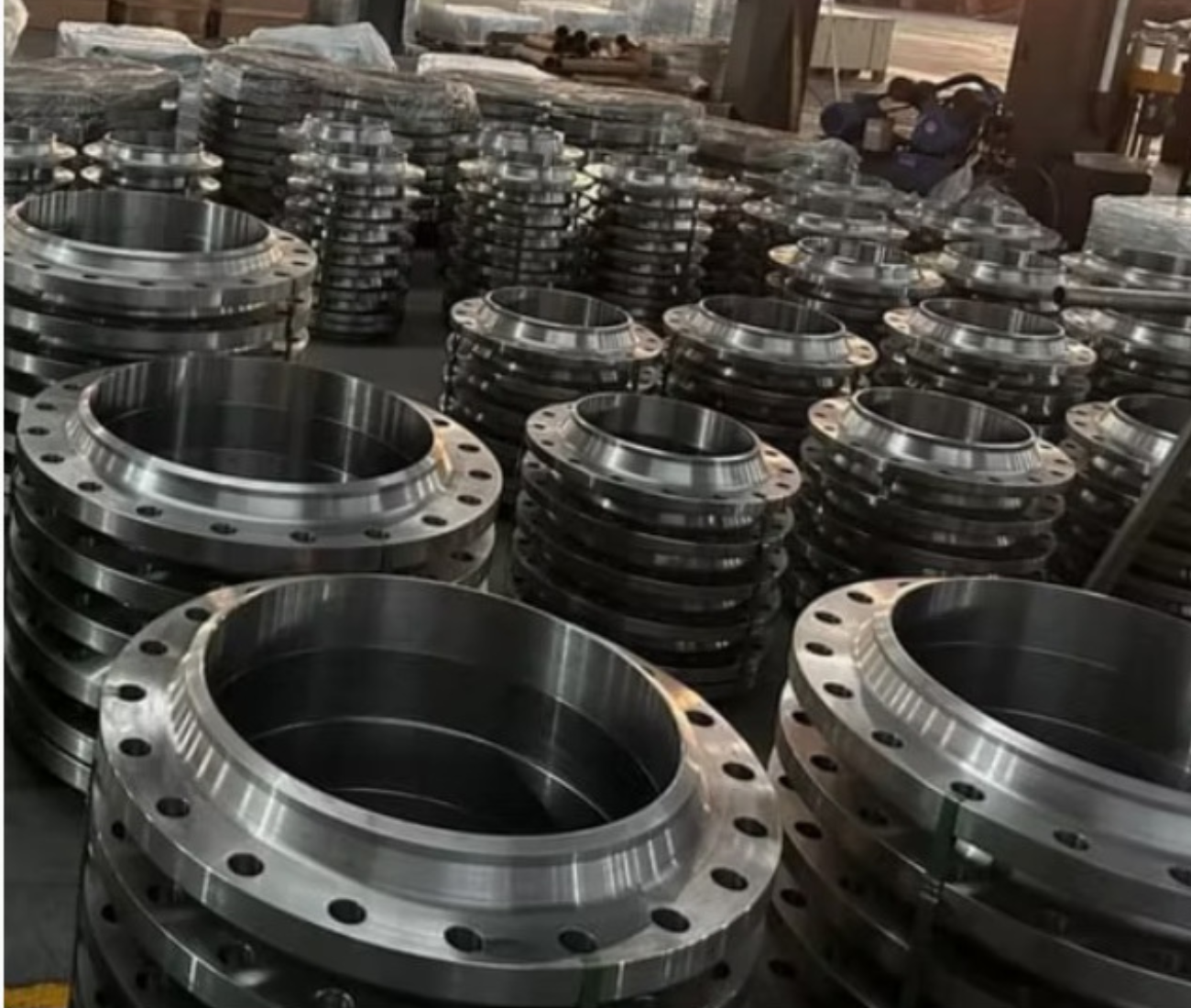

The available flange types include Weld Neck, Socket Weld, Blind, Threaded, and Slip-On Flanges, all manufactured to comply with standards such as API, ASTM/ASME, and ISO.

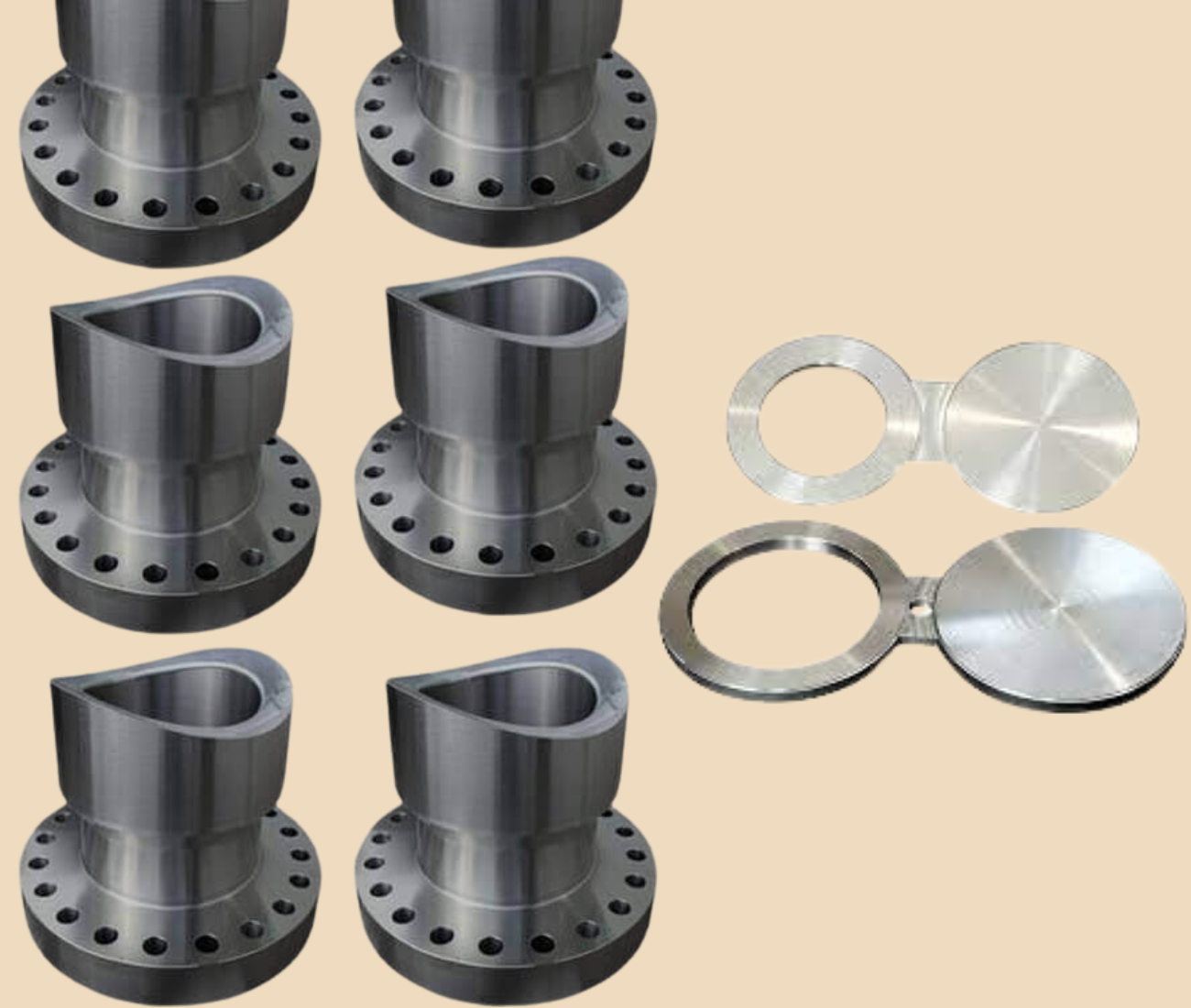

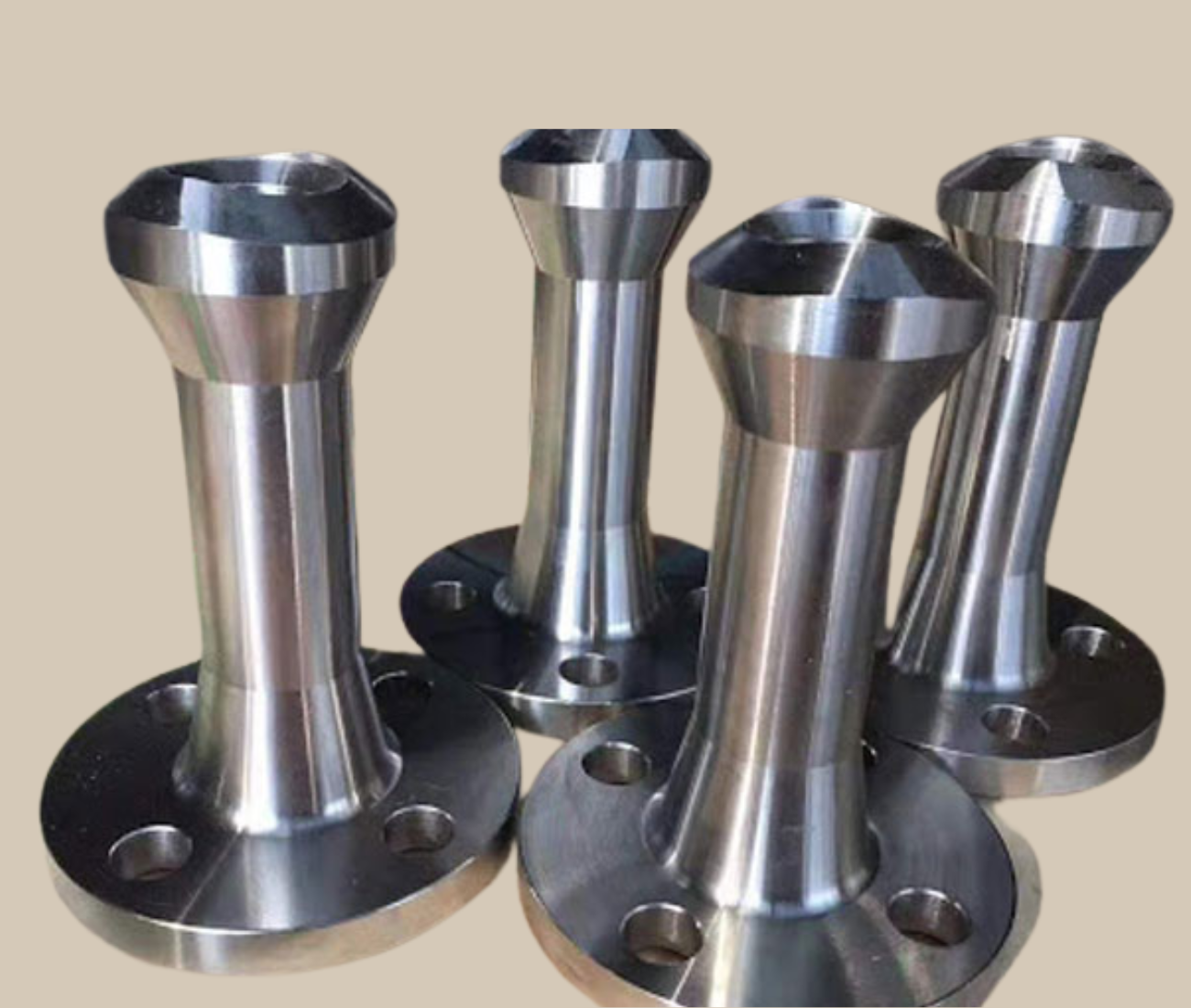

The product portfolio also includes specialized components such as Spectacle Blinds, Drip Rings, Long Weld Necks, Nozzles, Insulation Flanges, Swivel Flanges, Orifice Flanges, and Nipo Flanges, providing effective solutions for specialized piping and flow control applications.
Flanges are manufactured using high-quality materials including Carbon Steel, Alloy Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Inconel, Titanium, Monel, and Hastelloy. Material grades include A105, A350 LF2, LF3, LF6, A182 F316, 304/304L, F316/316L, F11, F12, F22, F51, F53, F55, High Yield F42 to F70, and Inconel 625/825, offering exceptional strength, corrosion resistance, and durability for demanding operating environments.
Specifications
| ASME B16.5 Spectacle Blind Flange Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Spectacle Blind Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Spectacle Blind Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Spectacle Blind Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO7005.1, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of Spectacle Blind Flange | Forged / Threaded / Screwed / Plate |
Types of Spectacle Blind Flange

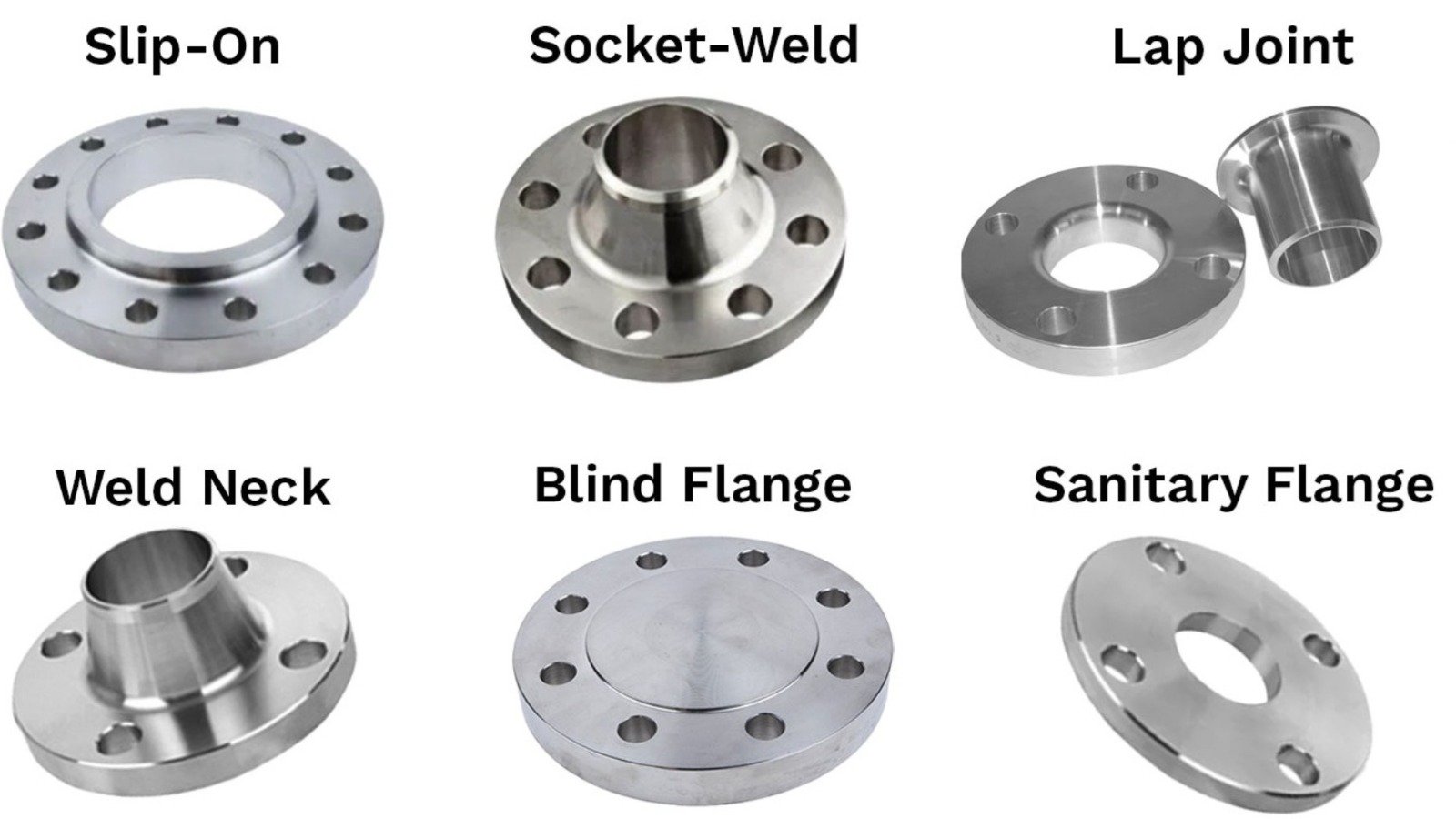

The product range also includes Slip-On Flanges, Socket-Weld Flanges, Lap Joint Flanges, Weld Neck Flanges, Blind Flanges, and Sanitary Flanges, each manufactured with precision to deliver high strength, reliable sealing, and long-lasting performance in industrial piping systems.
